Jib Cranes



Need a flexible solution to safely move heavy loads? A jib crane may be right for your operations. Because this crane style is designed to handle loads under 5 tons, it’s more affordable than ceiling-mounted options like top-running cranes or underhung cranes. And you’ll easily be able to move it as your shop layout changes or grows.

Since we’re a master industrial crane distributor, you’ll have access to top vendors like Gorbel, Demag and Spanco. And as a single-source integrator, RMH Systems will handle your project fully in-house, from our jib crane sales team to engineering and installation. We’ll also provide your aftermarket service, including annual OSHA inspections and jib crane parts for repairs.

At RMH, we’ve been helping companies like yours work more safely and efficiently for more than 80 years. Ask our engineers about how we can design a jib crane that helps you work smarter and grow your business, regardless of size or complexity.

Request a Free Consultation

What Is a Jib Crane?

A jib crane has a horizontal boom that supports a movable hoist that moves in a circular or semi-circular motion. These cranes are usually fixed to the wall or a floor-mounted pillar, but some types are portable.

Our engineers recommend using a jib crane when:

  • You need to lift less than 1 ton.
  • Your industry involves specific, repeatable tasks.
  • Your footprint is under 16 feet.
  • You’re looking for a less expensive lifting option.
  • Your ceiling or flooring has a lower weight capacity.

There are different types of jib cranes. The type that’s right for your application depends on your needs.

  • Wall-mounted jib crane— Also known as a column-mounted jib crane, this style provides the most clearance, making it useful if you have overhead obstructions.

  • Portable jib crane—This style offers the most flexibility, since you can move it out of the way when you’re done using it.

  • Floor-mounted jib crane—Recommended for tight spaces or for supplementing other overhead cranes. Can also be used outdoors.

  • Articulating jib crane—Offers the most rotation, making it easier to reach around a corner or into a machine. They can also move smoothly around obstructions and columns.

Not sure what’s right for your needs? Our experienced jib crane engineering team is here to help you find the ideal solution for your facility. Contact us to get started.

4 Benefits of Jib Cranes

With the help of a jib crane, your employees will be able to move bulky or heavy loads more easily and safely. This helps you reduce the risk of lifting injuries and protect your bottom line.

Lifting injuries make up 20% of all worker compensation claims, according to FMP Global, which have an average compensation of $24,000.

Make better use of your employees by having a jib crane do the heavy lifting. It’s inefficient to use multiple people to lift something or have to wait for a fork truck operator.

Not every facility needs a heavy-duty overhead crane. Because jib cranes are designed for light-duty loads, they’re more affordable than other types of cranes.

If you need to change your shop’s layout or your operation grows, it’ll be easy to relocate your jib crane.

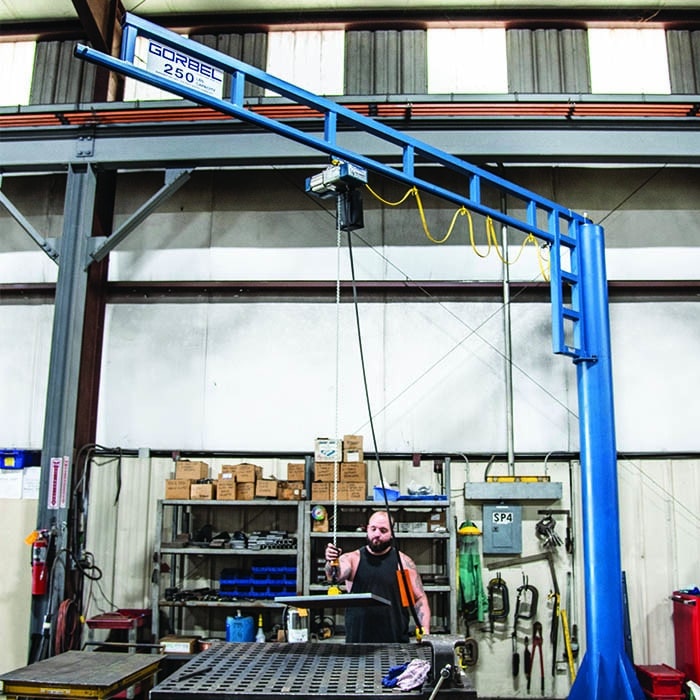

Jib crane
An underhung crane moves items in a warehouse.

Industries Where Jib Cranes Are Used

Agriculture
Manufacturing
Light Industrial

  • Welding
  • Fabrication
Production
Food

These are some of the most common industries RMH works with. Don’t see yours included?

Contact us for more information >

Configurations for Jib Cranes

A jib crane moves a heavy piece of equipment.

Jib cranes can be designed in a variety of capacities and radius sizes, as well as a range of below-the-hook lifting devices. Capacities range from 50 pounds to 5 tons, with a maximum radius of 30 feet. Foundations are needed for jibs lifting over 1 ton or covering longer spans.

Our below-the-hook lifting devices include:

  • Vacuum—suitable for lifting large sheets of materials, such as plywood, glass, marble or thin sheets of steel.
  • Magnets—suitable for moving steel.
  • Grippers and grabs—suitable for moving multiple sheets or items that are too heavy for vacuum or magnets.
  • Spreader bars—suitable for items that need to be picked up in multiple areas.

Ask our engineers about how we can customize a solution that meets your needs.

Our Jib Crane Vendors

Gorbel jib cranes
Spanco jib cranes

Experts in Industrial Cranes

RMH Systems creates solutions that make it even easier for you to automate and grow.

Master Distributor

RMH is a master distributor and class-above dealer for overhead cranes. There isn’t a vendor that we don’t carry. And we can get many parts and components that others can’t. This ensures your project will be completed quickly and on time.

Conveniently Located

We’re conveniently located in the Midwest and work with companies across the country.

Right Size

We’re just the right size to take on large projects without the bureaucracy.
